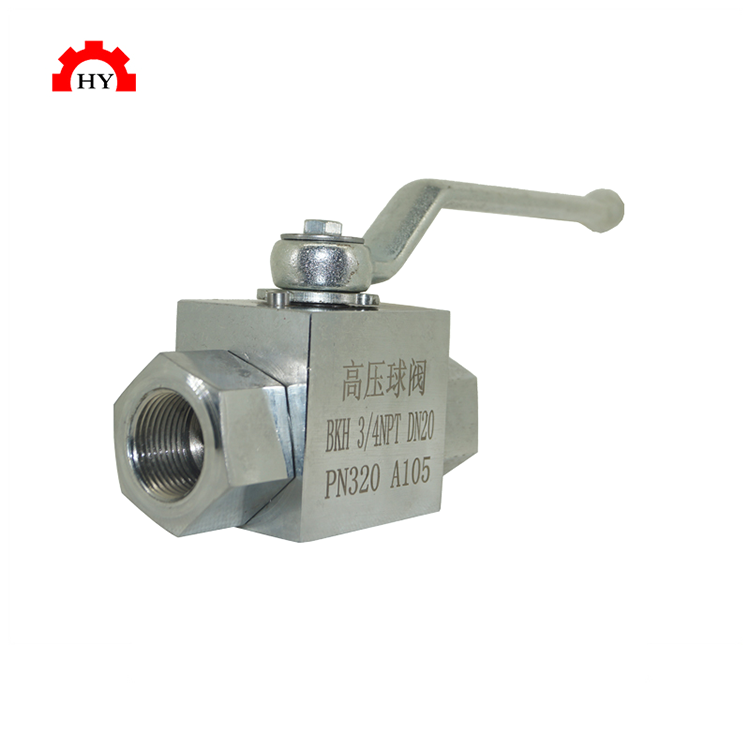

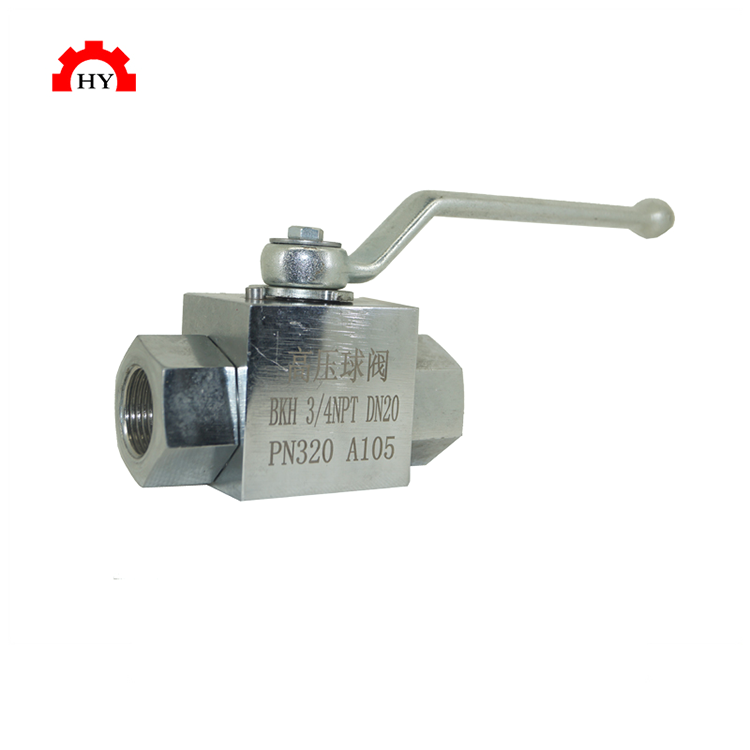

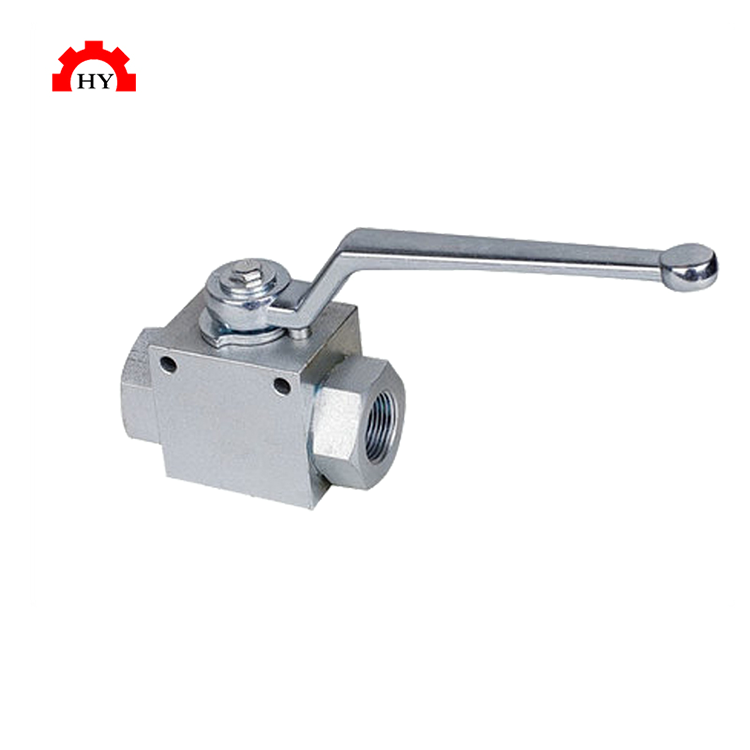

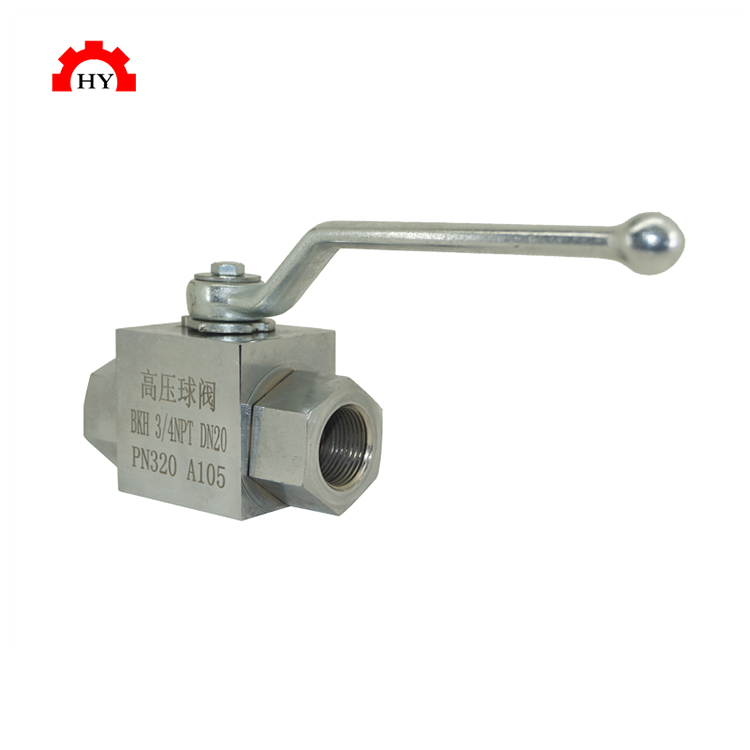

Female thread hydraulic ball valve

What is the female thread hydraulic ball valve ?

Female thread hydraulic ball vlave is a kind of valve which the opening and closing parts(ball) are driven by the valve stem , and around the ball valve axis for rotating movement of the valve .Max pressure could be up to 7250 PSI .

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a “floating ball”) to control flow through it. It is open when the ball’s hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve’s status.

Ball valve specification

Main material sheet

Product Characteristics

Safe, reliable and leak-proof connection;
Easy to install ,disconnect and retighten;
No torque is transmitted to tubing during installation
Specified specification available upon request
Quality assurence
Free sample can be sent to test quality before place an order.

Advantages

1. The ball ball and body of the ball valve are made of high-quality stainless steel, and its anti-corrosion performance is particularly good.
2. The use of metal seal can fully meet the drilling mud medium environment.
3. The size of the hydraulic drive part structure is small, which can meet the narrow installation environment.
4. The torque is large, and the hydraulic control platform of the blowout preventer can meet the requirements of use.
5. The hydraulic ball valve is more convenient to operate, and can be operated automatically lightly and remotely. Better to extend the range of use of hydraulic ball valves.
6. It can be used for manual operation and normally open action under extremely harsh environmental conditions.
7. In the case of supporting automatic computer operation, the double eccentric ball valve needs to be equipped with a hydraulic actuator.
8. The opening force of the hydraulic ball valve is small, and the closing can break the obstacle to achieve all the advantages of the double eccentric hemisphere valve such as good sealing performance.
9. Hydraulic ball valve is not only wear-resistant but also corrosion-resistant material.
