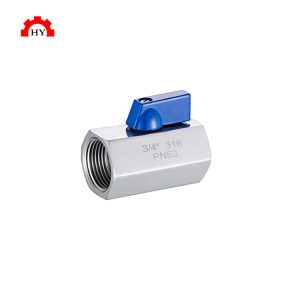

Female thread mini ball valve

What is the female thread mini ball valve ?

Female thread mini ball vlave is a kind of valve which the opening and closing parts(ball) are driven by the valve stem , and around the ball valve axis for rotating movement of the valve .Max pressure could be up to 6.4Mpa .

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a “floating ball”) to control flow through it. It is open when the ball’s hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve’s status.

Ball valve specification

Main material sheet

Product Characteristics

Safe, reliable and leak-proof connection;
Easy to install ,disconnect and retighten;
No torque is transmitted to tubing during installation
Specified specification available upon request
Quality assurence
Free sample can be sent to test quality before place an order.

Advantages

Free of maintenance
Compact and portable
Small operating torque
Gasket complies with PTFE
Handle level can be installed on the side of the valve body,no matter of the flow direction
It can be match with pneumatic and electric actuators
Valve Type: One piece, Two piece, Three-piece, Butterfly ball type
Cores Type: T type,L type,Direct type
Material :AISI304,316L
